Audioprofi 0370

Elin AG für elektrische Industrie; Wien

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 207632

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 4 x 1,5 & 2 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Audioprofi 0370 - Elin AG für elektrische
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 240 x 132 x 60 mm / 9.4 x 5.2 x 2.4 inch
  • Notes
  • Portable-Radio mit UKW/KW/MW/LW und Digitaluhr, PLL-Quarz-Synthesizer-Tuner.
    1 Watt Musikleistung, 4 x 5 Stationsspeicher. Teleskopantenne eingebaut.
    Zeitanzeige, Wecksignal durch Radio. Einschlafautomatik (60 min.).
    Kopfhörerbuchse (3,5 mm Klinke), Batteriebetrieb (4x R14), Netzteil 220V, 50Hz eingebaut.
    Batterie für Uhr 2x R6.
  • Net weight (2.2 lb = 1 kg)
  • 0.950 kg / 2 lb 1.5 oz (2.093 lb)
  • Source of data

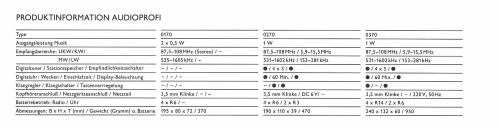

  • -- Original prospect or advert
  • Mentioned in
  • TrauSchau Elin - Die Unterhaltungselektronik 1990/91 Profi Line
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
