HiFi Stereo Video Cassette Recorder Videoprofi 6129

Elin AG für elektrische Industrie; Wien

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 288694

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Video-Taperecorder/-Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HiFi Stereo Video Cassette Recorder Videoprofi 6129 - Elin AG für elektrische
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 93 x 367 mm / 16.5 x 3.7 x 14.4 inch
  • Notes
  • Video Signal System

    PAL: R/P|SECAM: R/P
    Videostandard: VHS
    Tuner equipped: Yes HF Output: Yes
    Timer: Yes Color: Yes
    Insert-Cut: No Controllable by Editing-System: No
    Timebas Corrector:

    No

    		 RGB Video In/Out: No
    Composite (FBAS) Video In/Out: Yes Component Video In/Out: No
    S-Video In/Out: No Signal to Noise Video: >40dB
    Horizontal Resol. black/white:   Horizontal Resolution Color: >240l.
    Dropout compensator:   Wow and Flutter lin. audiotrack:
    No. of Audiochannels linear track: 1 No. of Audiochannels helical track:

    2
    Signal to Noise linear Audio track:   Signal to Noise helical Audio track: >80dB
    Audio Out Asym Audio In Asym
    crosstalk lin. Audio track   crosstalk heli. Audio track

    Audio Frequency Response : 20Hz to 20000Hz
    Remote Control: IR

    HiFi-Stereo VHS-HQ-VPS Slimline Videorecorder Modell Elin Videoprofi 6129.
    HiFi-Gleichlaufschwankungen <0,005%, 108 Kanäle, 60 Programmplätze, VPS, Suchlauf, Kanaldirektwahl, Programmierung: 365 Tage - 8 Ereignisse, OTR - Quick Recording, Bandzählwerk mit Memory, Assemble Schnitt, max. Spielzeit Audio/Video - 4/4 Stunden
    Standbild, Einzelbild, Kopfhöreranschluss, Leistungsaufnahme 30 Watt, Standby 7 Watt

  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Mentioned in

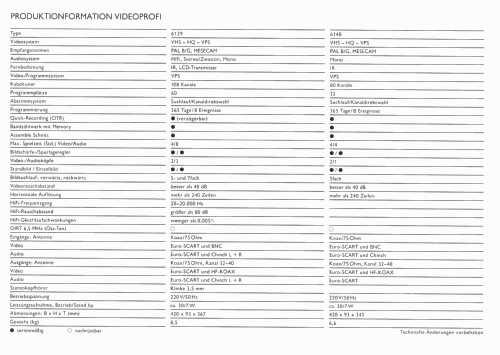

  • -- Original prospect or advert (Elin Katalog 1990/91)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
