• Year
  • 1990
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 288945

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (160 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stereoprofi 8059 - Elin AG für elektrische
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 360 x 410 x 330 mm / 14.2 x 16.1 x 13 inch
  • Notes

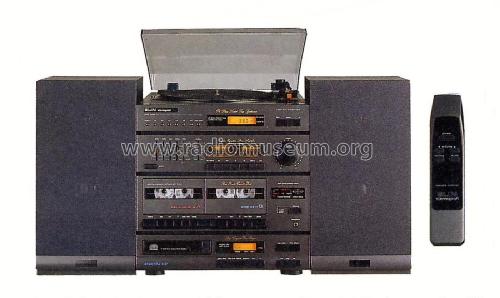

  • Stereo Musikanlage Modell Elin Stereoprofi 8059
    2x 55 Watt Sinus 4 Ω, 2x 80 Watt Musik 4 Ω, 50 - 20000 Hz, Loudness, 5-Band Graphic Equalizer (100, 330, 1000, 3300, 10000 Hz, +/-9 dB), Digital Synthesizer Tuner - UKW, MW, LW, Sendersuchlauf Seek, Autoscan, 20 Stationsspeicher (10 x UKW, 5 x MW, 5 x LW), LCD-Anzeige, Frontlade-Doppelcassetten-Deck, Normal und High Speed Dubbing,
    Continuous Play, Auto-Stop, 40-12500 Hz, Frontlade-Single-CD-Player, Titeldirektwahl, 16 Titel-Speicher, IntroScanm, halbautomatischer 2-Speed Plattenspieler mit Magnetsystem, Staubschutzhaube,Infrarot Fernbedieung.
    3-Weg Lautsprecherboxen - (80 Watt, 4 Ω, 1 x 185 mm Tiefton, 1 x 72 mm Breitband
    1x 50 mm Hochton - 210 x 410 x 160 mm, 3 kg)

  • Net weight (2.2 lb = 1 kg)
  • 7.9 kg / 17 lb 6.4 oz (17.401 lb)
  • Mentioned in
  • -- Original prospect or advert (Elin Katalog 1990/91)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
