Signal Generator SG-299 C/U

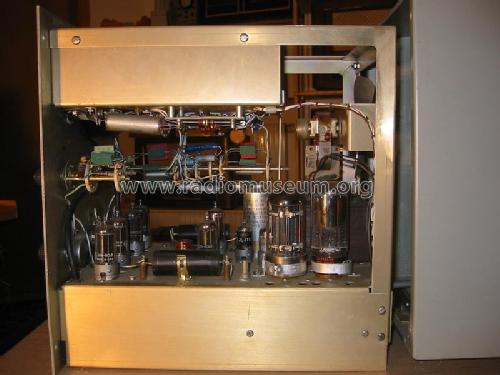

Signal Generator SG-299 C/U ; Elion Instruments, (ID = 630098) Equipment Signal Generator SG-299 C/U ; Elion Instruments, (ID = 560980) Equipment
Signal Generator SG-299 C/U ; Elion Instruments, (ID = 630099) Equipment
Use red slider bar for more.
Signal Generator SG-299 C/U ; Elion Instruments, (ID = 630098) Equipment
Elion Instruments,: Signal Generator SG-299 C/U [Equipment] ID = 630098 580x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator SG-299 C/U, Elion Instruments, Burlington

Country:  United States of America (USA)
Manufacturer / Brand:  Elion Instruments, Burlington
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 15: 6BQ7A 6CL6 6CL6 5726 6C4WA 6CL6 6CL6 6CL6 6CL6 6CL6 6CL6 5U4GB 6080 6BH6 5651
Details
Power type and voltage Alternating Current supply (AC) / 115 oder 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Signal Generator SG-299 C/U - Elion Instruments, Burlington
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 250 x 360 x 360 mm / 9.8 x 14.2 x 14.2 inch
Notes Signal Generator SG-299/U is a wide-range (1Hz to 1MHz, six ranges) square-wave generator. Seven volts pp output at 75 ohms (0.02µs rise time) and fiftyfive volts pp at 600 ohms (0.1µs rise time). Both outputs continuously variable down to zero. Additional step attenuator 20, 40 and 60dB for 75 Ohm output. Positive side grounded, negative going output. Sync. input. Wave Symmetry variable. power consumtion 210 watts.
Net weight (2.2 lb = 1 kg) 13.620 kg / 30 lb 0 oz (30 lb)
Source of data -- Original-techn. papers.

Model page created by Hans Jürgen Heider. See "Data change" for further contributors.
