Music Center MC1

Music Center MC1 ; Elipson; Paris (ID = 2453075) Radio Music Center MC1 ; Elipson; Paris (ID = 2453077) Radio
Music Center MC1 ; Elipson; Paris (ID = 2453074) Radio Music Center MC1 ; Elipson; Paris (ID = 2453076) Radio
Use red slider bar for more.
Music Center MC1 ; Elipson; Paris (ID = 2453075) Radio
Elipson; Paris: Music Center MC1 [Radio] ID = 2453075 1400x824
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music Center MC1, Elipson; Paris

Country:  France
Manufacturer / Brand:  Elipson; Paris
Year: 2012 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment

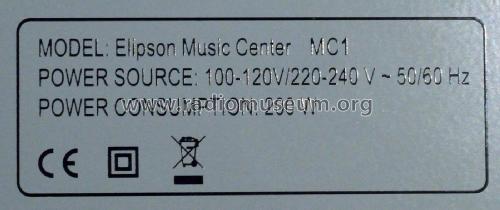

Power type and voltage Alternating Current supply (AC) / 50 to 60Hz, 100-120; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (undistorted)
from Radiomuseum.org Model: Music Center MC1 - Elipson; Paris
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 330 x 73 mm / 13 x 13 x 2.9 inch
Notes

Elipson Music Center MC1 is a combined DAB/DAB+/RDS-FM receiver with integrated class D amplifier and CD-Player. Has additional analogue inputs for two AUX sources and an optical digital input in TOSLINK format. Accepted sample rates up to 96 kHz and 24 bit.
DAB/FM antenna input in F format.

Headphones out (3,5 mm jack). Two speaker outputs and a sub out (cinch) for subwoofer amplifier/loudspeaker.

Designed in France
Made in China

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Mentioned in - - Manufacturers Literature (User manual)

Model page created by Kent Johansson. See "Data change" for further contributors.
