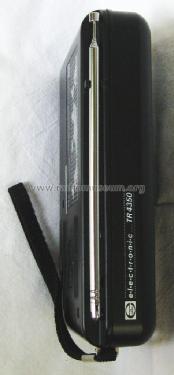

PLL Synthesized World Band Receiver Electronic TR4350

PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044545) Radio PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044546) Radio
PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044547) Radio PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044548) Radio
PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044549) Radio
Use red slider bar for more.
PLL Synthesized World Band Receiver Electronic TR4350; Elite; Kaufhof (ID = 2044545) Radio
Elite; Kaufhof: PLL Synthesized World Band Receiver Electronic TR4350 [Radio] ID = 2044545 1024x815
Select picture or schematic to display from thumbnails on the right and click for download.
For model PLL Synthesized World Band Receiver Electronic TR4350, Elite; Kaufhof

Country:  Germany
Manufacturer / Brand:  Elite; Kaufhof
Year: 1991 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Radio with other functions
Power type and voltage Batteries / addl. power jack / SR54: 2 x 1,5 / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: PLL Synthesized World Band Receiver Electronic TR4350 - Elite; Kaufhof
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 118 x 40 mm / 7.5 x 4.6 x 1.6 inch
Notes

PLL Weltempfänger mit Uhren-/Weckfunktion, Suchlauf und 5 Stationsspeichertasten.

Schwenkbare 73cm Teleskopantenne, beleuchtbares digitales LCD Display für Uhren- und Abstimmanzeige, Wecktonwahl, Tastaturverriegelung, 3,5mm Ohrhöreranschluss.

2 x 1,5V Knopfzellen SR54 zur Gangreserve der Uhr.

Empfangsbereiche:
UKW: 87,5 - 108MHz,
KW: 5,9 - 15,5MHZ,
MW: 531 - 1602kHz,
LW: 153 - 281kHz.









Net weight (2.2 lb = 1 kg) 0.472 kg / 1 lb 0.6 oz (1.04 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
