Netzgerät ME 400

Netzgerät ME 400; Elowi; Locher KG, (ID = 2409525) Power-S Netzgerät ME 400; Elowi; Locher KG, (ID = 2409526) Power-S
Netzgerät ME 400; Elowi; Locher KG, (ID = 1222099) Power-S Netzgerät ME 400; Elowi; Locher KG, (ID = 1222105) Power-S
Netzgerät ME 400; Elowi; Locher KG, (ID = 1222112) Power-S Netzgerät ME 400; Elowi; Locher KG, (ID = 1222116) Power-S
Netzgerät ME 400; Elowi; Locher KG, (ID = 1475103) Power-S Netzgerät ME 400; Elowi; Locher KG, (ID = 1475104) Power-S
Netzgerät ME 400; Elowi; Locher KG, (ID = 1475105) Power-S
Use red slider bar for more.
Netzgerät ME 400; Elowi; Locher KG, (ID = 2409525) Power-S
Elowi; Locher KG,: Netzgerät ME 400 [Power-S] ID = 2409525 1024x702
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netzgerät ME 400, Elowi; Locher KG, Ernst; Kenzingen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Elowi; Locher KG, Ernst; Kenzingen/Schwarzwald
Year: 1967 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Netzgerät ME 400 - Elowi; Locher KG, Ernst;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 122 x 68 x 42 mm / 4.8 x 2.7 x 1.7 inch
Notes

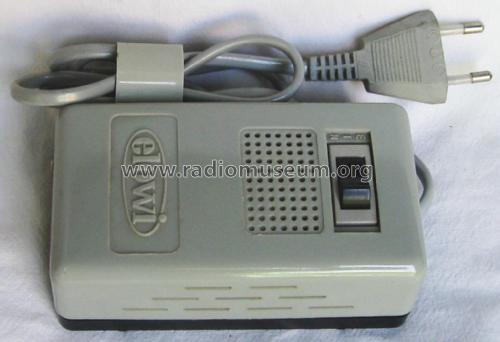

Provides power of 6, 7.5, 9 Volt, with screwdriver switch on the bottom. Power switch on top. Output jack of 2.5 mm.

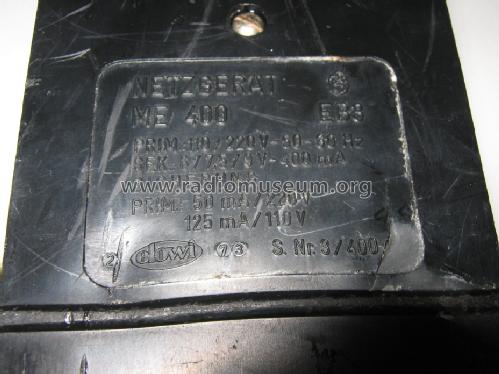

On the bottom is the following written:
Prim- 110/220V - 50-60 Hz,
Sek.: 6/7,5/9V-400 mA
Sicherung:
Prim: 50 mA/220V
Prim: 125 mA/110V

Auch 1975 noch in den Katalogen

Net weight (2.2 lb = 1 kg) 0.380 kg / 0 lb 13.4 oz (0.837 lb)
Price in first year of sale 23.00 DM

Model page created by Felice Nicolini. See "Data change" for further contributors.
