Volt/Ohmmeter (Woltoomomierz) U716

Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2292499) Equipment
Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352329) Equipment Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352330) Equipment
Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352331) Equipment Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352332) Equipment
Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352333) Equipment
Use red slider bar for more.
Volt/Ohmmeter U716; Elpo, Zaklad (ID = 2352329) Equipment

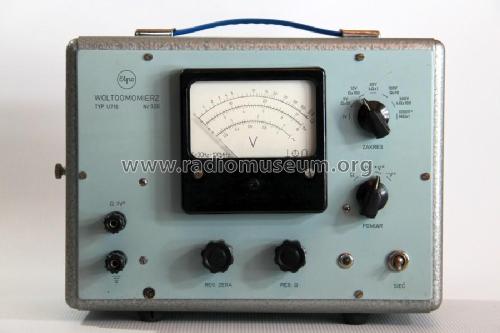

Elpo, Zaklad: Volt/Ohmmeter U716 [Equipment] ID = 2352329 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Volt/Ohmmeter (Woltoomomierz) U716, Elpo, Zaklad Elektromechaniczny; Rumia

Country:  Poland
Manufacturer / Brand:  Elpo, Zaklad Elektromechaniczny; Rumia
Year: 1969 ? Category: Service- or Lab Equipment
Valves / Tubes 3: EAA91 6Н8С 6X4 or 6Ц4П
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Volt/Ohmmeter U716 - Elpo, Zaklad
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 230 x 200 mm / 11.8 x 9.1 x 7.9 inch
Notes

Messung von Gleich- und Wechselspannung im Frequenzbereich von 30 Hz bis 100 MHz und Widerstandsmessung.

Messbereiche Gleichspannung: 1V, 3V, 10V, 30V, 100V, 300V, 1000V

Messbereiche Wechselspannung: 1V, 3V, 10V, 30V, 100V, 300V

Messbereiche Widerstand: 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ

Röhrenbestückung auch 6Ц4П statt 6X4.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in - - Manufacturers Literature

Model page created by Chris Lepiarczyk. See "Data change" for further contributors.
