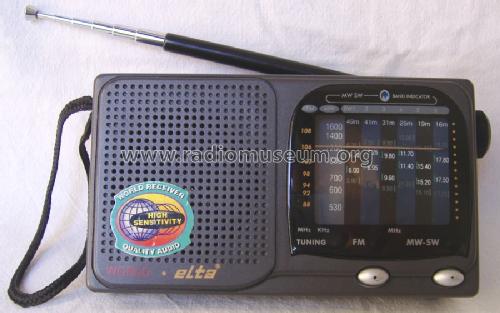

WR 3554; Elta GmbH, Rödermark (ID = 1526622) Radio
Elta GmbH, Rödermark: WR 3554 [Radio] ID = 1526622 900x565
Select picture or schematic to display from thumbnails on the right and click for download.
For model WR 3554, Elta GmbH, Rödermark

Country:  Germany
Manufacturer / Brand:  Elta GmbH, Rödermark
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) KA22425
Main principle Superheterodyne (common)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: WR 3554 - Elta GmbH, Rödermark
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 130 x 70 x 30 mm / 5.1 x 2.8 x 1.2 inch
Notes

Receptor multibanda,tiene seis ensanches de banda en OC.

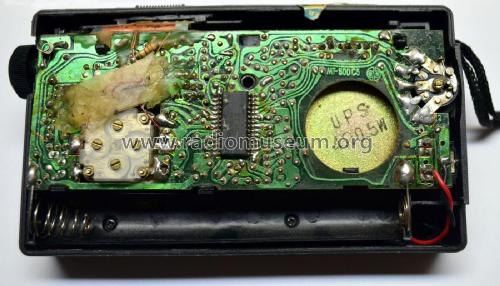

Elta 8-Band Weltempfänger, "single chip radio" mit 1 IC, beinhaltet FM, AM, und NF-Verstärker.

Price in first year of sale 259.00 DM

Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
