Digital-Multimeter DMM7001

Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 454129) Equipment

Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 454130) Equipment
Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 454131) Equipment Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 454132) Equipment
Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 1702916) Equipment Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 2041864) Equipment
Use red slider bar for more.
Digital-Multimeter DMM7001; ELV Elektronik AG; (ID = 454131) Equipment

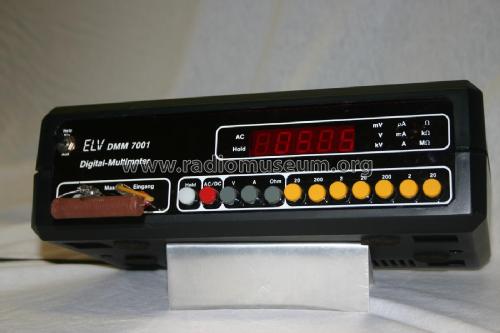

ELV Elektronik AG;: Digital-Multimeter DMM7001 [Equipment] ID = 454131 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital-Multimeter DMM7001, ELV Elektronik AG; Leer (Ostfriesland)

Country:  Germany
Manufacturer / Brand:  ELV Elektronik AG; Leer (Ostfriesland)
Year: 1986 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital-Multimeter DMM7001 - ELV Elektronik AG; Leer
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 270 x 150 x 100 mm / 10.6 x 5.9 x 3.9 inch
Notes Digital-Multimeter mit 4½-stelliger Anzeige.
Messbereiche: 200 mV, 2 V, 20 V, 200 V, 1000 V -/~; 20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 2 A, 20 A -/~; 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Holger Krebs. See "Data change" for further contributors.
