DMM - Testgerät DTG402

DMM - Testgerät DTG402; ELV Elektronik AG; (ID = 1671710) Equipment DMM - Testgerät DTG402; ELV Elektronik AG; (ID = 1671720) Equipment
DMM - Testgerät DTG402; ELV Elektronik AG; (ID = 1671727) Equipment
Use red slider bar for more.

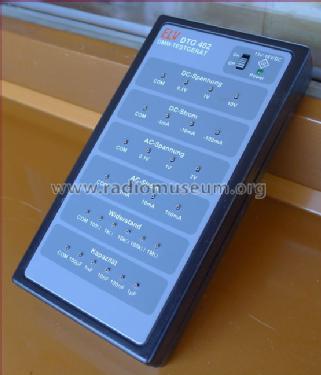

DMM - Testgerät DTG402; ELV Elektronik AG; (ID = 1671710) Equipment
ELV Elektronik AG;: DMM - Testgerät DTG402 [Equipment] ID = 1671710 556x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model DMM - Testgerät DTG402, ELV Elektronik AG; Leer (Ostfriesland)

Country:  Germany
Manufacturer / Brand:  ELV Elektronik AG; Leer (Ostfriesland)
Year: 2002 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 13 - 18 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: DMM - Testgerät DTG402 - ELV Elektronik AG; Leer
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 165 x 30 mm / 3.3 x 6.5 x 1.2 inch
Notes

Output test values: (25°C)
Voltage DC ±0,1% 0,1 V ±0,7% 1 V 10 V
AC ±1,5% 0,1 V 1 V 3 V
Current DC ±0,5% 1 mA 10 mA 100 mA
AC ±2% 1 mA 10 mA 100 mA
Resistance ±1% 100 Ω 1 kΩ 10 kΩ 100 kΩ 1 MΩ
Capacitance ±5% 100 pF 1 nF 10 nF 100 nF 1 µF



Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
