FBAS-TTL -Konverter
ELV Elektronik AG; Leer (Ostfriesland)
- Country
- Germany
- Manufacturer / Brand
- ELV Elektronik AG; Leer (Ostfriesland)
- Year
- 1975 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 280147
ELV_FBAS-Konverter

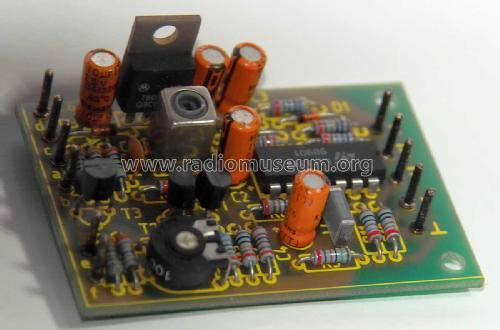

FBAS-Konverter, 3D-Ansicht
FBAS-Konverter, Lötseite

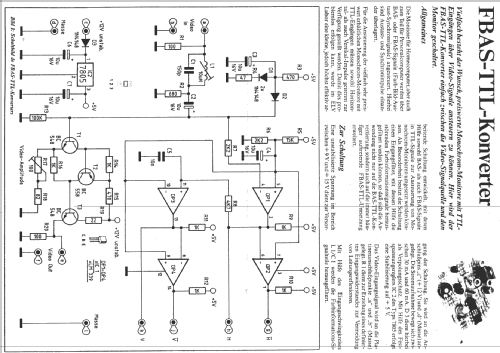

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Wave bands
- - without
- Details
- Converter
- Power type and voltage
- Powered by external power supply or a main unit. / DC 9 - 15 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: FBAS-TTL -Konverter - ELV Elektronik AG; Leer
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 60 x 20 x 40 mm / 2.4 x 0.8 x 1.6 inch
- Notes
-
FBAS - TTL-Konverter, zur Ansteuerung von Monochrom-Monitoren mit TTL-Eingängen, durch normale Video-Signale( FBAS & BAS ), Betriebsspannung 9 - 15 VDC, genaue Beschreibung siehe Pläne. Die Halbleiter können mehrfach vorhanden sein.
- Source of data
- -- Original-techn. papers.
- Mentioned in
- - - Manufacturers Literature (ELV - Journal)
- Author
- Model page created by Reinhard Keins. See "Data change" for further contributors.
