• Country
• Germany

• Manufacturer / Brand
• ELV Elektronik AG; Leer (Ostfriesland)

• Year
• 1979 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 279679

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• TL082

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / 1 x 9 / 8-30 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Printed Circuit Board

• from Radiomuseum.org

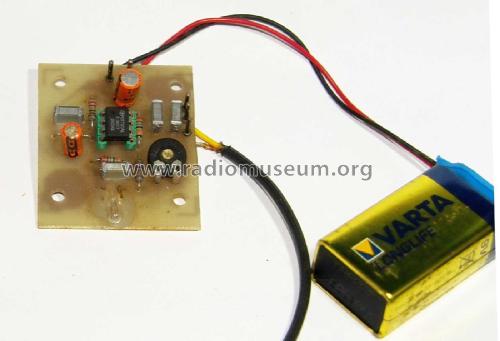

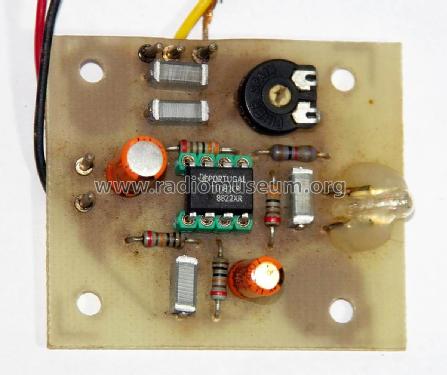

• Model: Ultraklirrarmer1 kHz-Pegeltongenerator - ELV Elektronik AG; Leer

• Shape
• Chassis only or for «building in»

• Notes

• ELV, 1 kHz Pegeltongenerator,

  Sinus-Generator mit einem Klirrfaktor 0,01 % ( ultraklirrarm ) stabile Ausgangsspannung und Amplitude auf  0 dB = 0,775V  justierbar, Betrieb mit 9 V Batterie oder Netzteil 8 - 30 V.

• Mentioned in
• ELV - Journal 41

• Author
• Model page created by Reinhard Keins. See "Data change" for further contributors.
