Wobbel-Funktions-Generator WFG 7002 (SFG 7002)

ELV Elektronik AG; Leer (Ostfriesland)

  • Year
  • 1996
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 241756

 Technical Specifications

  • Number of Transistors
  • 10
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Wobbel-Funktions-Generator WFG 7002 - ELV Elektronik AG; Leer
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 270 x 150 x 95 mm / 10.6 x 5.9 x 3.7 inch
  • Notes
  • 13 ICs (Signalerzeugung mit MAX038), 12 Dioden, 5LEDs.

    Frequenzbereich: 0,1 Hz - 10MHz in acht Bereichen.
    Ausgangssignale: Rechteck, Sinus, Dreieck; Impuls, Sägezahn.
    Ausgangsspannung: max. 10Vss an 50Ω.
    DC-Offset, schaltbar: +/- 7V.
    Dämpfungsglied, schaltbar: 0, 20, 40 dB.

    Sync-Ausgang TTL-Pegel an 50Ω.

    Wobbelbereich 10:1.
    Wobbelfrequenz 1 - 100Hz.
    Wobbelausgang 4Vss an 1kΩ.

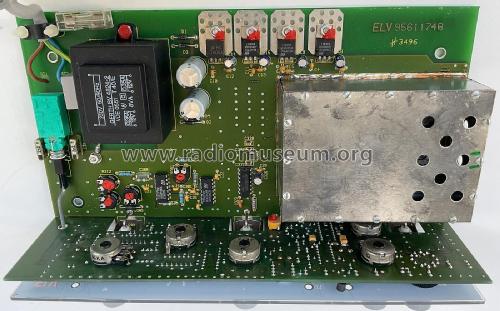

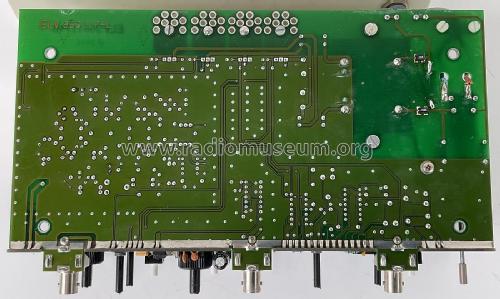

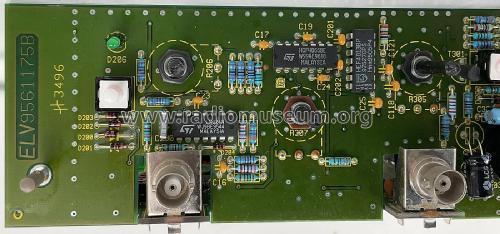

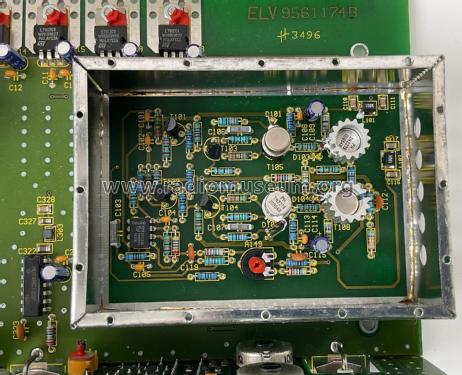

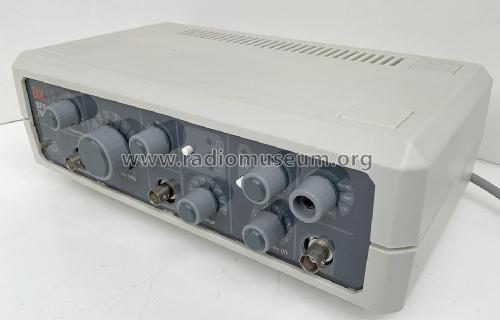

    Das Gerät wurde im schwarzen Gehäuse mit deutscher Beschriftung als WFG 7002 vorgestellt. Die Serienauslieferung erfolgte dann jedoch im grauen Gehäuse als SFG 7002 (Sweep Function Generator) mit englischer Beschriftung.

    Das Fertiggerät kostete 298,- DM.
    Das Profimodell wurde in einem Aluminumgehäuse geliefert.

  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Price in first year of sale
  • 198.00 DM
  • Mentioned in
  • ELV Magazine 6/95 1/96
  • Author
  • Model page created by Klaus Ortwein. See "Data change" for further contributors.
