Luchs Typ B

Luchs Typ B; E.M.; wo? (ID = 82816) Crystal
Luchs Typ B; E.M.; wo? (ID = 82817) Crystal Luchs Typ B; E.M.; wo? (ID = 82818) Crystal
Luchs Typ B; E.M.; wo? (ID = 82819) Crystal Luchs Typ B; E.M.; wo? (ID = 113290) Crystal
Luchs Typ B; E.M.; wo? (ID = 509920) Crystal
Use red slider bar for more.
Luchs Typ B; E.M.; wo? (ID = 82817) Crystal
E.M.; wo?: Luchs Typ B [Crystal] ID = 82817 745x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luchs Typ B, E.M.; (wo?):

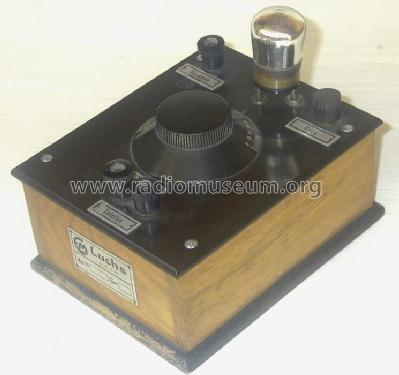

Der Glasrohr-Detektor ist nicht original dazu.

Country:  Germany
Manufacturer / Brand:  E.M.; (wo?)
Year: 1924/1925 ? Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Luchs Typ B - E.M.; wo?
Material Wooden case
Dimensions (WHD) 130 x 95 x 170 mm / 5.1 x 3.7 x 6.7 inch
Notes

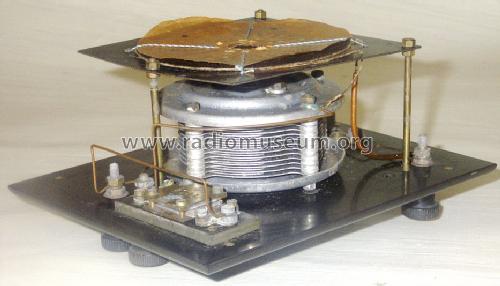

Drehkondensator mit kreisförmigem Plattenschnitt, Flachspule eingebaut.

Vergleiche mit Modell Fälschung Fake: Detektorempfänger Luchs Typ D

Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
