1130D Ch= 120245-D

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 299025

• • alternative name: Emerson Television

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 3BC5 5AT8 3CB6 3CB6 5U8 12BY7A 5U8 5T8 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 12AX4GTA 1B3GT 21AUP4A

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1130D Ch= 120245-D - Emerson Radio & Phonograph

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Emerson model 1130D  is a 17" b/w TV equipped with chassis 120245-D, tuner 470786 and picture tube 17LP4.

• Mentioned in

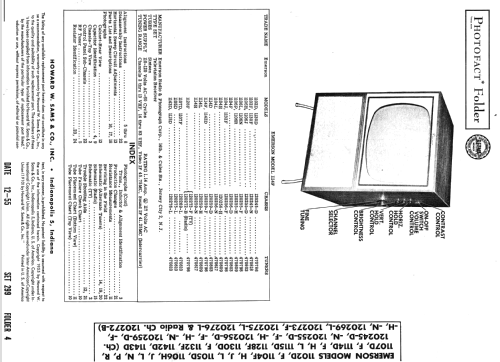

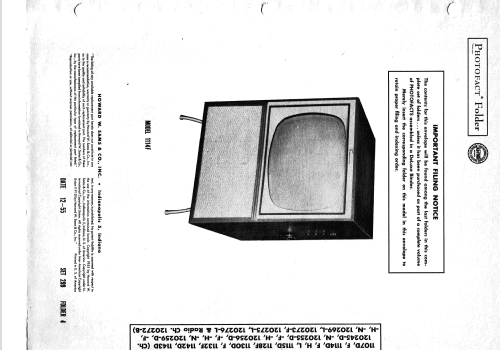

• Photofact Folder, Howard W. SAMS (Set 322 Folder 1)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 299 Folder 4 dated 5-56)
