• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 299053
    • alternative name: Emerson Television

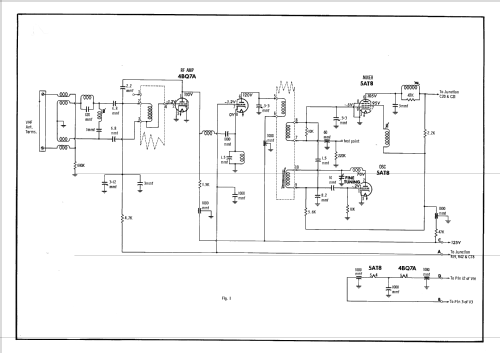

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superhet with RF-stage
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • from Radiomuseum.org
  • Model: 1149D Ch=120276-L - Emerson Radio & Phonograph
  • Notes
  • Emerson model 1149D  is a 21" b/w TV equipped with chassis 120276-L, tuner 470810 and picture tube 21AUP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
