1291 Ch= 120387M(C)
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1958 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 184497
-
- alternative name: Emerson Television

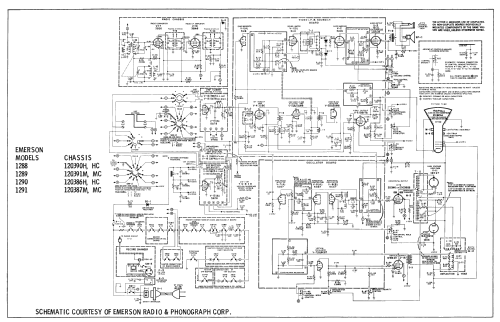

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 3CB6 5AM8 12BY7A 5U8 3AV6 12C5 6CG7 12W6GT 6CG7 25DN6 or 25CD6GB 12AX4GTA 1B3GT 5AT8 3BC5 3BE6 3BA6 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 1291 Ch= 120387M - Emerson Radio & Phonograph
- Notes

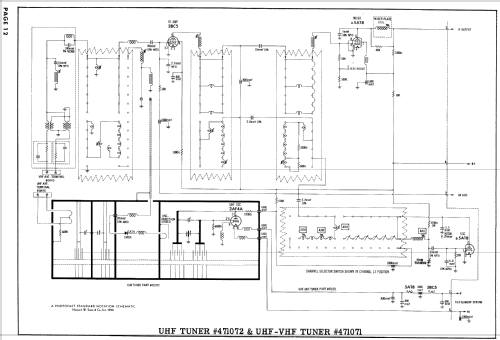

- 21 " b/w TV with US standard VHF tuner, tuning range channels 2 thru 13 VHF, 14 thru 83 UHF.
Models 1288, 1289, 1290 and 1291 use AM-Tuner and Emerson Record Changer #819117.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 406, Folder 2)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 389 Folder 16-S dated 2-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
