507 Ch= 120005; Emerson Radio & (ID = 2380034) Radio
Emerson Radio &: 507 Ch= 120005 [Radio] ID = 2380034 1400x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model 507 Ch= 120005 octal tubes, Emerson Radio & Phonograph Corp.; New York, NY:
Front view, knobs may be not original

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 or 12SA7GT 12SK7 or 12SK7GT 12SQ7 or 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 507 Ch= 120005 [octal tubes] - Emerson Radio & Phonograph
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Chassis No.120005 has glass or metal Octal tubes.
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios (6th edition)

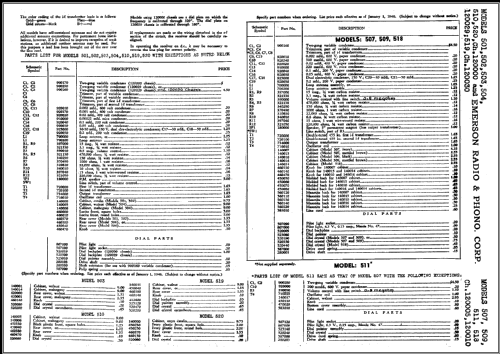

Literature/Schematics (1) Emerson Radio and Television Service Manual (Page 25)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 06, 1946 (pg 37-38)

Model page created by Götz Linss. See "Data change" for further contributors.
