• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1946–1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38517

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SS7 12SA7 6SS7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 512 Ch= 120006 [octal tubes] - Emerson Radio & Phonograph

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Chassis No.120006 has Octal tubes. The Emerson model 512, 515, 516 and 550 use the same chassis - an older version and a newer. This is the older chassis of the Emerson model 512 with octal tubes.

• Price in first year of sale
• 37.75 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in

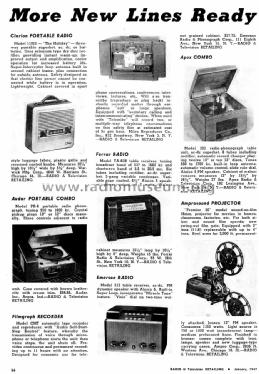

• Radio Retailing (Radio & Television R.) (January 1947 page 56.)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 08, 1948

• Literature/Schematics (2)
• Emerson Radio and Television Service Manual (Page 36)

• Literature/Schematics (3)
• Emerson Folder Form. 48-107, 10-47 for 1948.
