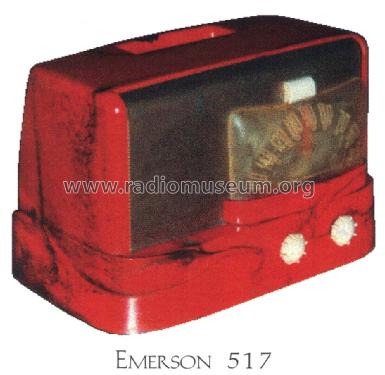

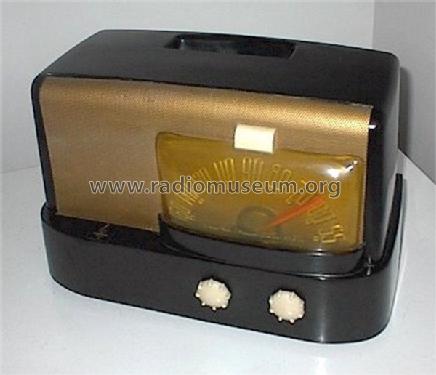

Emerson Radio &: 517 Moderne Ch= 120010 [Radio] ID = 2111900 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 517 Moderne Ch= 120010, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT or 12SF7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 517 Moderne Ch= 120010 - Emerson Radio & Phonograph
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

BC Band Tuning Range: 540-1620kHz. Built-in loop antenna.

 Loewy design. Colors and Material:

Black bakelite, brown bakelite, ivory plaskon, ivory plaskon w/gold marbling, green plaskon w/gold marbling, red plaskon w/gold marbling.





Price in first year of sale 29.95 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Table Top Radios Vol. 1 Stein 98

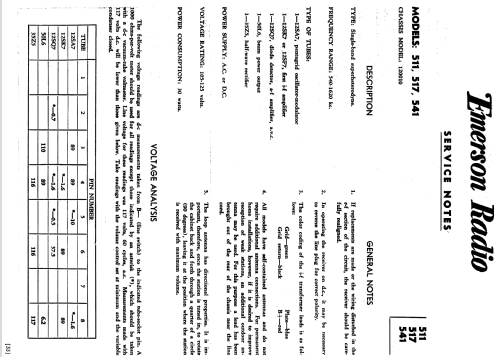

Literature/Schematics (1) Emerson Radio and Television Service Manual (Page 33)

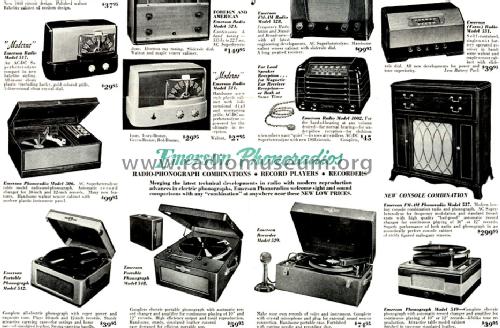

Literature/Schematics (2) Radio Retailing (Radio & Television R.) (May 1947 page 46.)
Literature/Schematics (3) Machine Age to Jet Age II
Literature/Schematics (4) Emerson Folder for 1947, Folder Form. 48-107, 10-47 for 1948.
