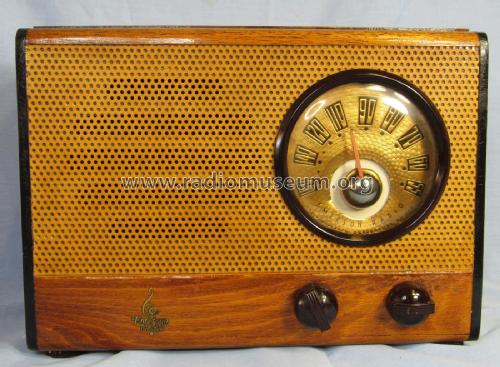

For model 539 Ch= 120044 dial plain, octal tubes, Emerson Radio & Phonograph Corp.; New York, NY:
Emerson Americana Modelo 539

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 or 12SA7GT 12SK7 or 12SK7GT 12SQ7 or 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 539 Ch= 120044 [dial plain, octal tubes] - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Chassis No.120044 has a plain dial and glass or metal Octal tubes. Walnut or Mahogany cabinet.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Literature/Schematics (1) Emerson Radio and Television Service Manual (Page 11)
