541 Ch= 120010; Emerson Radio & (ID = 2425658) Radio

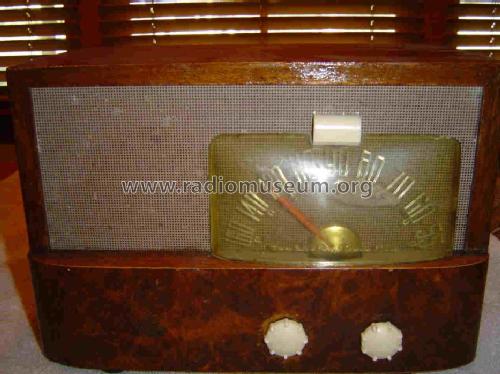

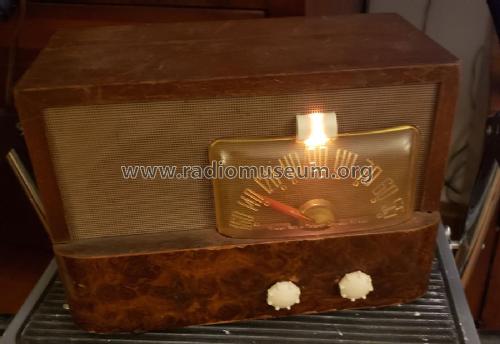

Emerson Radio &: 541 Ch= 120010 [Radio] ID = 2425658 1400x1071
Select picture or schematic to display from thumbnails on the right and click for download.
For model 541 Ch= 120010, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT or 12SF7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 541 Ch= 120010 - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Loewy design.

Price in first year of sale 29.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in A Flick of the Switch 1930-1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 08, 1948
Literature/Schematics (2) Emerson Radio and Television Service Manual (Page 33)
Literature/Schematics (4) Emerson Folder for 1947, Folder Form. 48-107, 10-47 for 1948.
