561 Moderne Ch= 120001B 6BJ6 (two minature tubes)

561 Moderne Ch= 120001B; Emerson Radio & (ID = 1808717) Radio 561 Moderne Ch= 120001B; Emerson Radio & (ID = 2406686) Radio
561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568210) Radio 561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568211) Radio
561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568212) Radio 561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568213) Radio

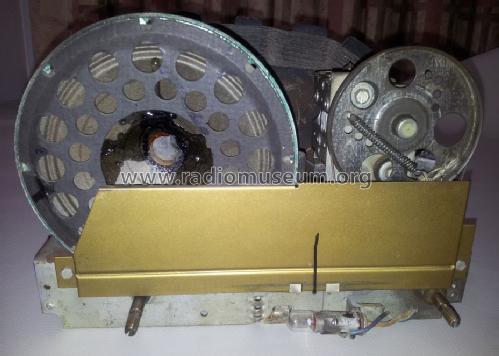

561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568214) Radio 561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568215) Radio
561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568216) Radio 561 Moderne Ch= 120001B; Emerson Radio & (ID = 1568217) Radio
Use red slider bar for more.
561 Moderne Ch= 120001B; Emerson Radio & (ID = 1808717) Radio

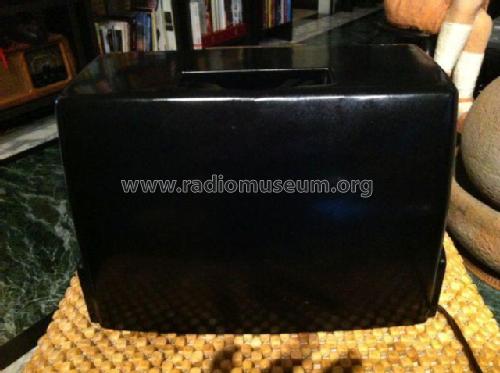

Emerson Radio &: 561 Moderne Ch= 120001B [Radio] ID = 1808717 640x525
Select picture or schematic to display from thumbnails on the right and click for download.

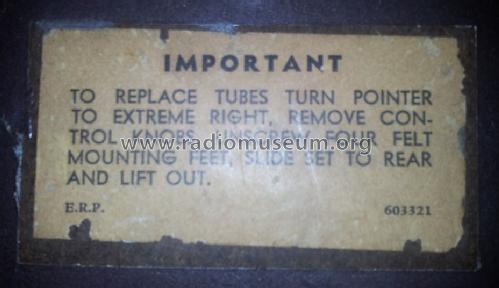

For model 561 Moderne Ch= 120001B 6BJ6 (two minature tubes), Emerson Radio & Phonograph Corp.; New York, NY:
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SG7 6SS7 6SS7 12AT6 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 561 Moderne Ch= 120001B [6BJ6 ] - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.5 x 7.25 x 7 inch / 292 x 184 x 178 mm
Notes

Two octal tubes 6SS7 replaced by two miniature tubes 6BJ6. See the other model here.

Choice of colors: brown or black or ivory with gold trim. Loewy design.
BC (540-1620kHz) band. Built-in loop antenna.

Price in first year of sale 29.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98
