564 Ch= 120027; Emerson Radio & (ID = 263028) Radio

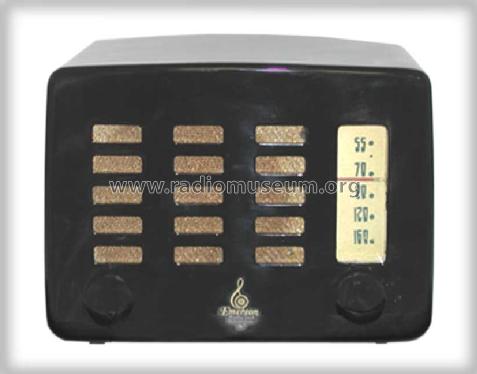

Emerson Radio &: 564 Ch= 120027 [Radio] ID = 263028 827x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model 564 Ch= 120027, Emerson Radio & Phonograph Corp.; New York, NY:
Ebay Nr. 320037044925 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 564 Ch= 120027 - Emerson Radio & Phonograph
Material Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14

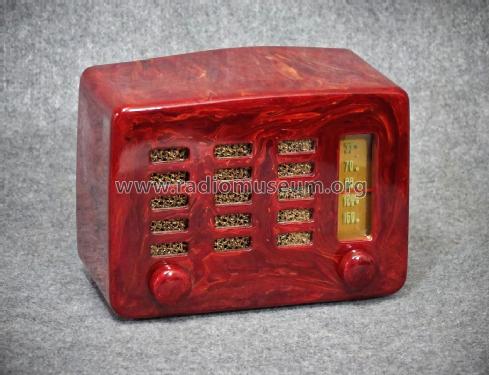

Notes BC (540-1620kHz) band. Built-in loop antenna. Cabinet colors available are Green Onyx, Red Mottled and Ebony. The Emerson model 564 with chassis 120027 uses tubes from 1946 - but Slusser shows it for 1940 (EE).
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)

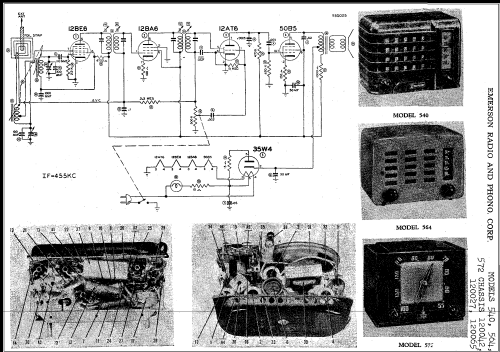

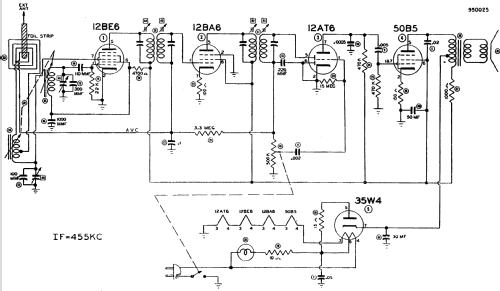

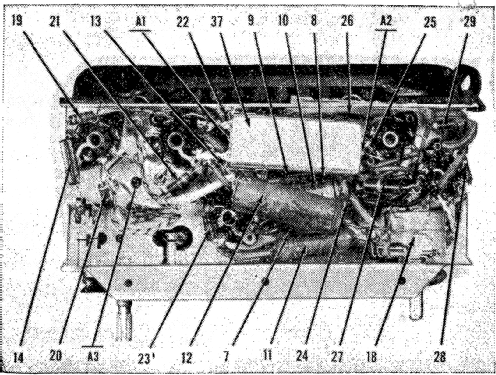

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Emerson Radio and Television Service Manual (Page 95)


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
