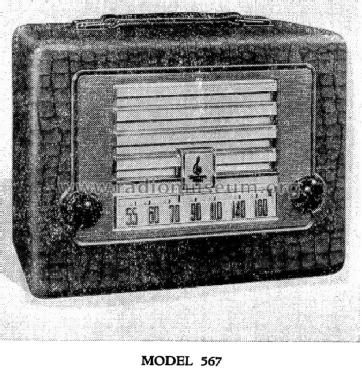

Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214616
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4.5 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 567 Ch= 120077 - Emerson Radio & Phonograph
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- BC (540-1620kHz) band. Built-in loop antenna. Cabinet is Leatherette. Emerson Radio and Television Service Manual lists models 560 and 567 together, using chassis 120016 and 120077 but it is not clear if both models used both chassis or if model 560 used chassis 120016 and model 567 used chassis 120077.
- Literature/Schematics (1)
- Emerson Radio and Television Service Manual (Page 138)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
