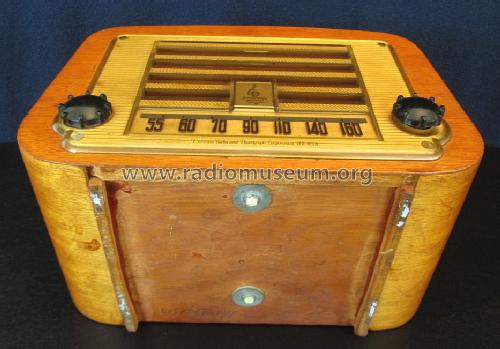

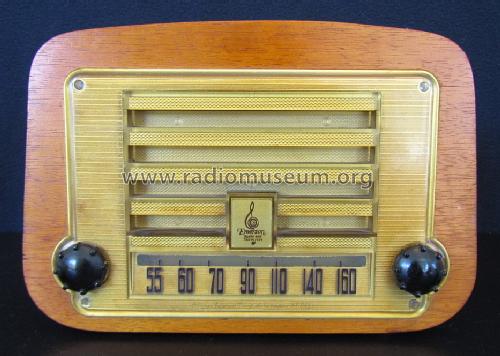

Emerson Radio &: 578A Ch= 120050A [Radio] ID = 2304739 1400x1103
Select picture or schematic to display from thumbnails on the right and click for download.
For model 578A Ch= 120050A, Emerson Radio & Phonograph Corp.; New York, NY:
Personal Collection Don Stickley

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BA6 12AT6 12BE6 35W4 50B5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: 578A Ch= 120050A - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 6.5 x 5.25 inch / 279 x 165 x 133 mm
Notes Cabinet by E. Ingraham Co., famous for their ability to shape wood. Slightly shorter than 578. Similar chassis in plastic version 547.
Source of data -- Original-techn. papers.
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 08, 1948

Model page created by Randy Anderson. See "Data change" for further contributors.
