• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18594

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

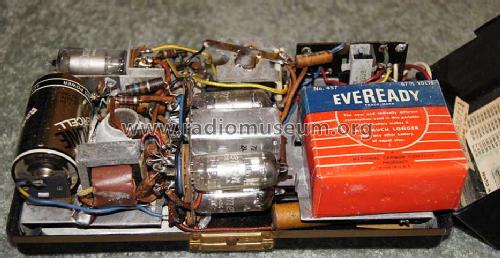

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 115; 6 & 67,5 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 584 - Emerson Radio & Phonograph

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 65 x 110 mm / 8.3 x 2.6 x 4.3 inch

• Notes

• Prodotta in USA. Solo OM (540 - 1600 Khz, 555 - 185 m) Funzionamento con batterie interne: "A" per i filamenti 6 V (Olin 4919 o Everady 724) "B" per la tensione anodica 67,5 V (Olin 1712 o Everady 457). Dotabile di alimentatore esterno funzionante direttamente dalla rete senza trasformatore unicamente con tensione di 125 V.

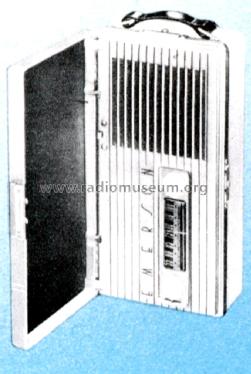

  Built-in loop antenna inside the cover.

  Available with plastic cabinet in Ivory, Tan or Green.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 39.95 $

• External source of data
• E. Erb 3-907007-36-0

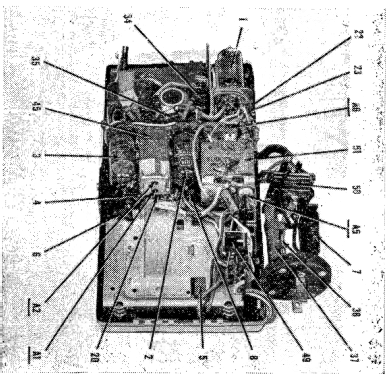

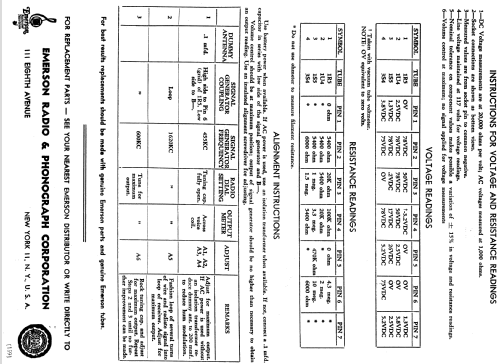

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (3)
• Emerson Folder No. 50-628 for "New 1950". Folder for "New 1952".
