• Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 38622
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

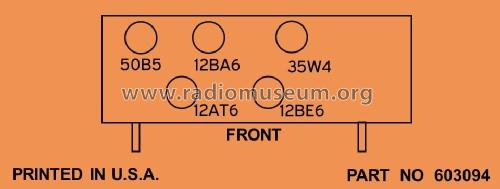

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 587 Ch= 120033B - Emerson Radio & Phonograph
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 211 x 140 x 130 mm / 8.3 x 5.5 x 5.1 inch
  • Notes
  • BC (540-1620kHz) band. Built-in loop antenna. Cabinet color is Black $14.95, Walnut or Ivory $19.95.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
  • Literature/Schematics (3)
  • Emerson Folder Form. No. 50-628 for "New 1950".
