613 Ch= 120085A; Emerson Radio & (ID = 2381239) Radio
Emerson Radio &: 613 Ch= 120085A [Radio] ID = 2381239 1009x764
Select picture or schematic to display from thumbnails on the right and click for download.
For model 613 Ch= 120085A, Emerson Radio & Phonograph Corp.; New York, NY:

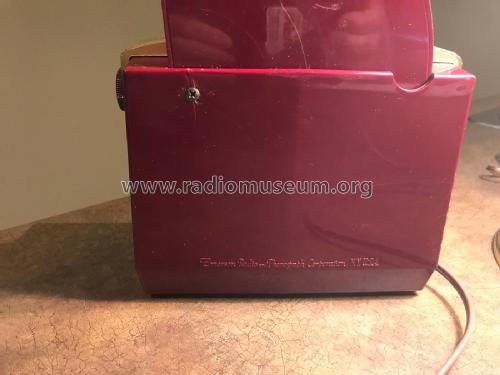

Front with antenna retracted

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4 or 3Q4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 105-125/1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 613 Ch= 120085A - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

BC (540-1620kHz) band. Built-in loop antenna. Selenium rectifier. Various colours. Same model with chassis 120085B also.

Price in first year of sale 29.95 $
External source of data Ernst Erb
Source of data Machine Age to Jet Age II
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950

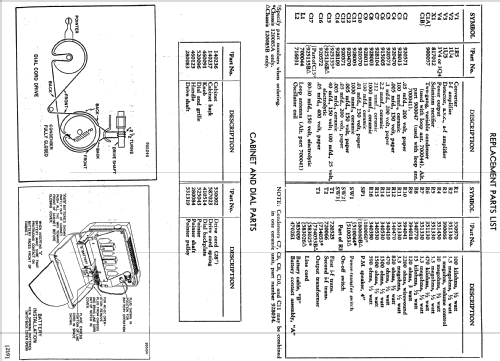

Literature/Schematics (2) Emerson Radio and Television Service Manual (Page 217)
Literature/Schematics (3) Emerson Folder Form. No. 50-628 for "New 1950".
