659B Ch= 120126-B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38664

• • alternative name: Emerson Television

• Picture

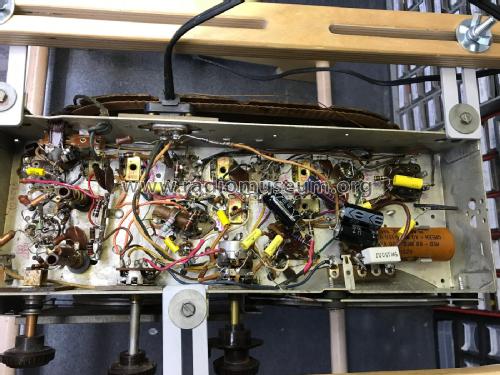

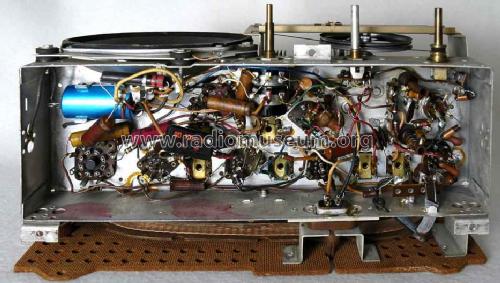

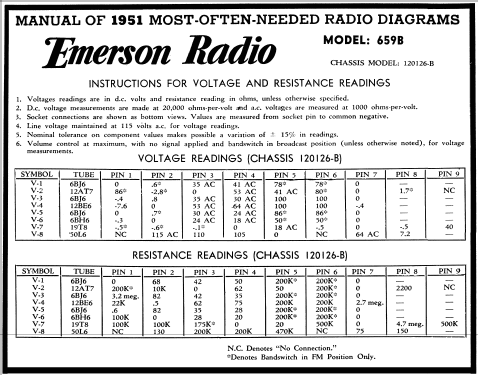

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

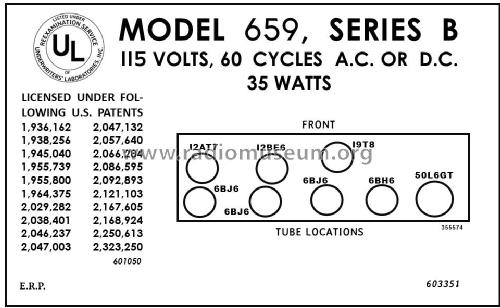

• 6BJ6 12AT7 12BE6 6BJ6 6BJ6 6BH6 19T8 50L6

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 659B Ch= 120126-B - Emerson Radio & Phonograph

• Shape

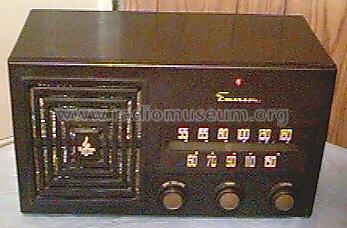

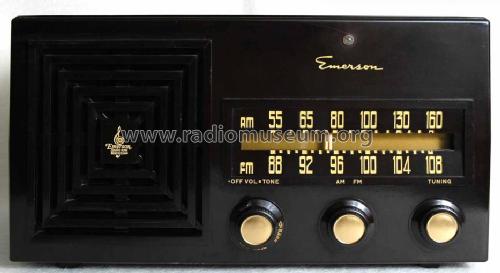

• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.5 x 7.75 x 7 inch / 343 x 197 x 178 mm

• Notes

• BC (540-1620kHz) and FM (88-108MHz) bands. Built-in loop antenna for BC band. Selenium Rectifier. Walnut plastic cabinet.

• Net weight (2.2 lb = 1 kg)
• 8 lb 15 oz (8.938 lb) / 4.058 kg

• Price in first year of sale
• 59.95 USD

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 11, 1951

• Literature/Schematics (3)
• Emerson Folder "New 1952".
