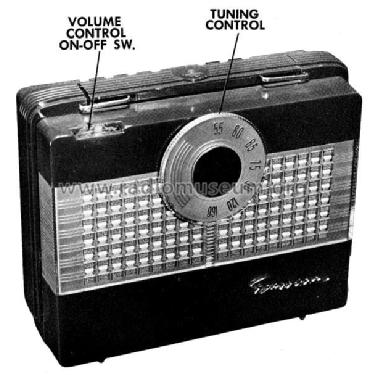

Emerson Radio &: 705A Ch= 120155-A [Radio] ID = 1129187 614x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model 705A Ch= 120155-A, Emerson Radio & Phonograph Corp.; New York, NY:
My own collection

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-120 / 67.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 705A Ch= 120155-A - Emerson Radio & Phonograph
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Assorted colors. Enclosed ferriloop antenna. Selenium Rectifier

Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-53, Set 208, Folder 4)
Literature/Schematics (3) Emerson Folder "New 1954".
