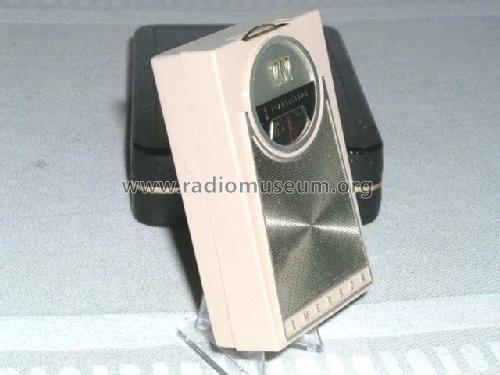

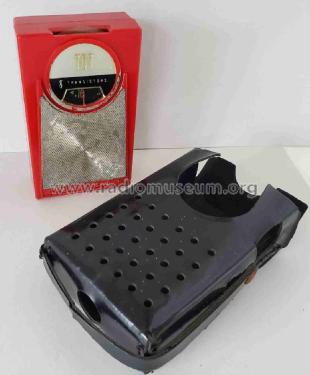

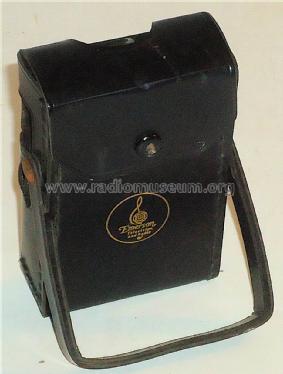

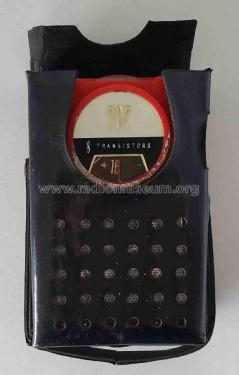

Emerson Radio &: 8 Transistors 707 Ch= 120598 [Radio] ID = 2050833 1077x1584
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Transistors 707 Ch= 120598, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / E133: 1 x 4.2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm
Power out
from Radiomuseum.org Model: 8 Transistors 707 Ch= 120598 - Emerson Radio & Phonograph
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 105 x 30 mm / 2.5 x 4.1 x 1.2 inch
Notes

Battery is Everready E133 - 4.2 V.

Net weight (2.2 lb = 1 kg) 0.175 kg / 0 lb 6.2 oz (0.385 lb)
Circuit diagram reference Beitman Radio Diagrams Vol. 22, 1962
Mentioned in Bunis, Transistor Radios, 2nd ed., p. 83, 1996
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 603 folder 5 date 11-62 title)

Model page created by Egon Penker. See "Data change" for further contributors.
