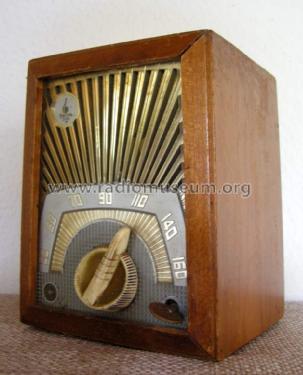

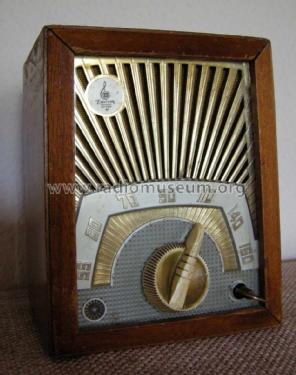

For model 713A, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
schematic requested
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 713A - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 130 x 170 x 120 mm / 5.1 x 6.7 x 4.7 inch
Notes

obviously similar chassis as in 713B, see Riders...

Source of data Collector's Guide to Antique Radios (6th edition)
Mentioned in Machine Age to Jet Age III
Literature/Schematics (3) Emerson Folder "New 1954".

Model page created by Didier Tholomier. See "Data change" for further contributors.
