820-B Ch= 120240-B
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 81118
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 820-B Ch= 120240-B - Emerson Radio & Phonograph
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Emerson model 820B is an AC operated phono amplifier (model 819B-3 speed manual player---model 820B-3 speed automatic record changer )
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 15, 1955
- Literature/Schematics (1)

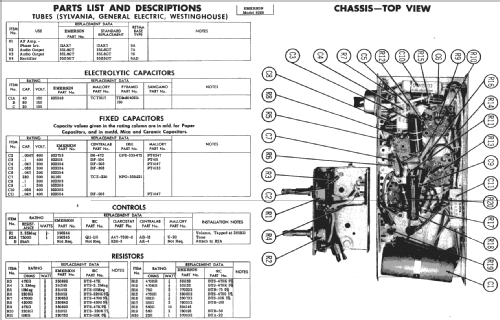

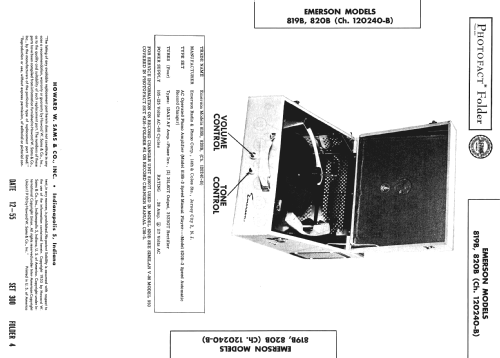

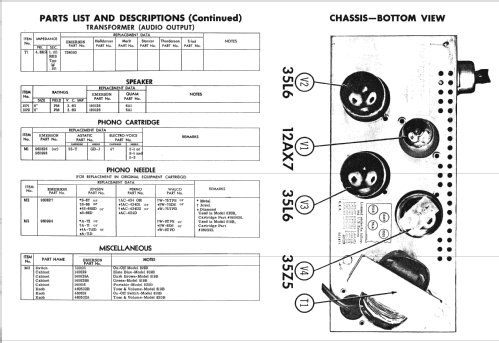

- Photofact Folder, Howard W. SAMS (Date 12-55, Set 300, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
