830-B Ch= 120252-B
Emerson Radio & Phonograph Corp.; New York, NY
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- 1955 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117=105-125/ 67.5 & 7.5 V Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 830-B Ch= 120252-B - Emerson Radio & Phonograph
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 170 x 85 mm / 8.3 x 6.7 x 3.3 inch

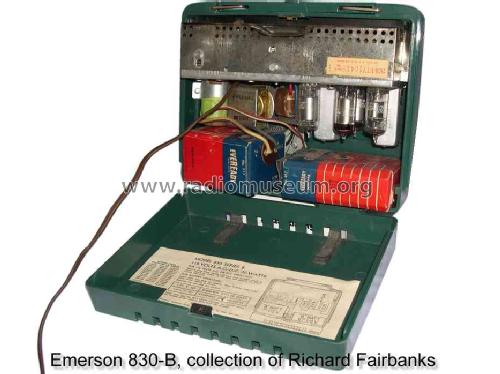

Emerson model 830B is a three power portable AM superheterodyne receiver.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 15, 1955
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-55 Set 291, Folder 6)
- Model page created by Egon Penker. See "Data change" for further contributors.
