838 Ch= 120274; Emerson Radio & (ID = 212439) Radio

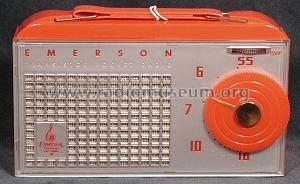

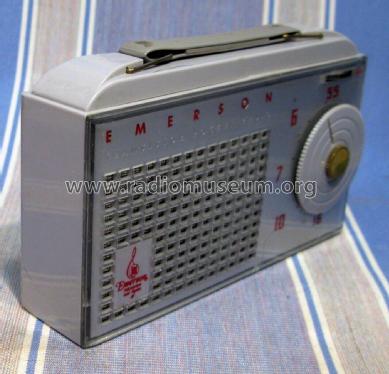

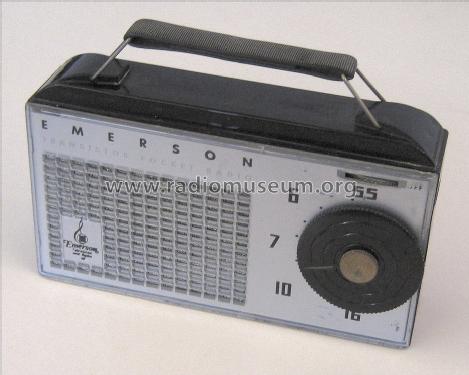

Emerson Radio &: 838 Ch= 120274 [Radio] ID = 212439 807x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model 838 Ch= 120274, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 1V6 1AH4 1AJ5
Semiconductors (the count is only for transistors) 2:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 & 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: 838 Ch= 120274 - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 153 x 90 x 33 mm / 6 x 3.5 x 1.3 inch
Notes

45V "B" battery Emerson EM86 or equivalent.

Net weight (2.2 lb = 1 kg) 1 lb 0 oz (1 lb) / 0.454 kg
Price in first year of sale 44.00 USD
Collectors' prices
External source of data Funkgeschichte Nr. 109
Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Mentioned in The Portable Radio in American Life
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-56, Set 311, Folder 4)

Model page created by Günther Stabe. See "Data change" for further contributors.
