Transistor III 843 (Ch= 120298)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81556

• • alternative name: Emerson Television

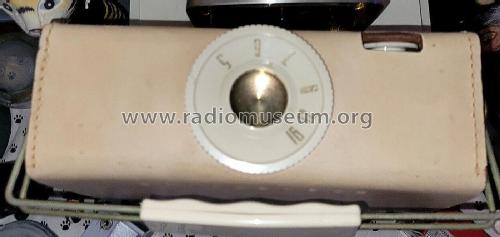

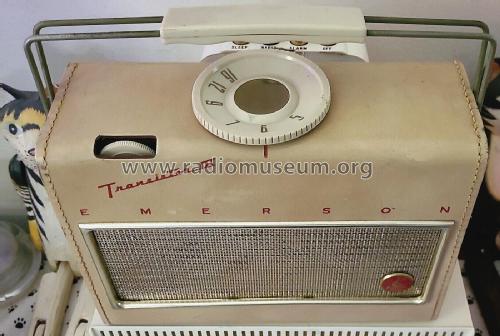

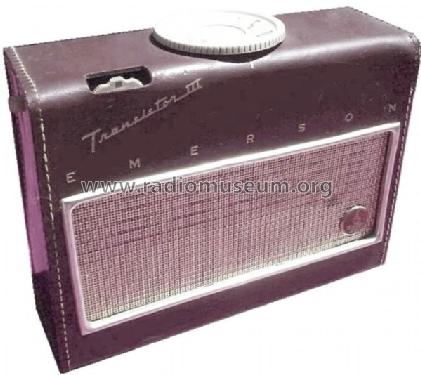

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1R5 1U4 1U5

• Number of Transistors
• 3

• Semiconductors
• 815006 815007 815007

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6/67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Transistor III 843 - Emerson Radio & Phonograph

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 9.3 x 7.3 x 3.5 inch / 236 x 185 x 89 mm

• Notes
• Hybrid.

• Source of data
• Beitman Radio Diagrams, Vol. 16, 1956

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
