For model 977 'Falcon' Ch= 120528, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 977 "Falcon" Ch= 120528 - Emerson Radio & Phonograph
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 97 x 50 mm / 6.1 x 3.8 x 2 inch
Notes

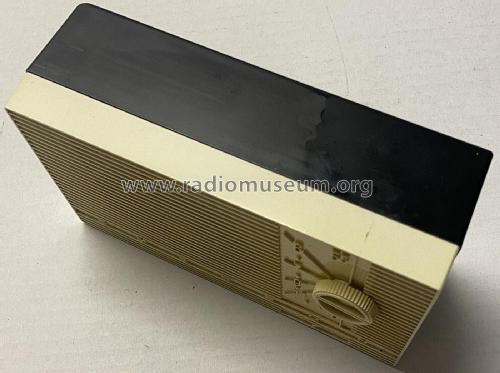

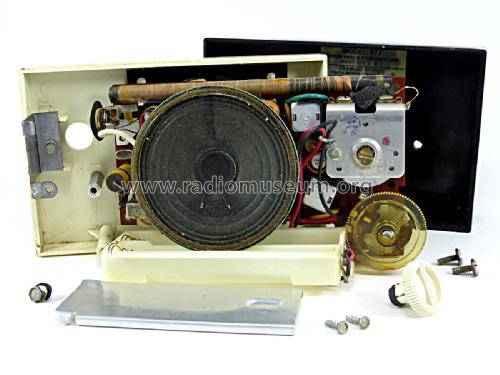

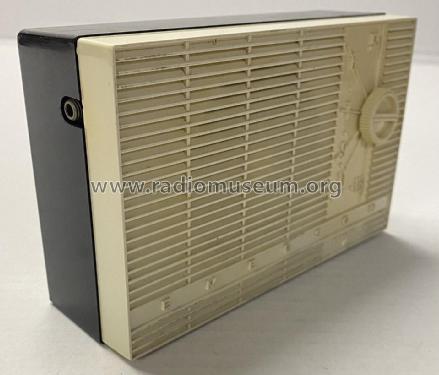

Emerson 977 'Falcon'.  Made in USA.  AM only.  Dial chord.  Civil Defense marks on station plate.  Two colors of models: black face/white chassis and white face/black chassis- sometimes a white chassis with white face.

Source of data Beitman Radio Diagrams, Vol. 21, 1961

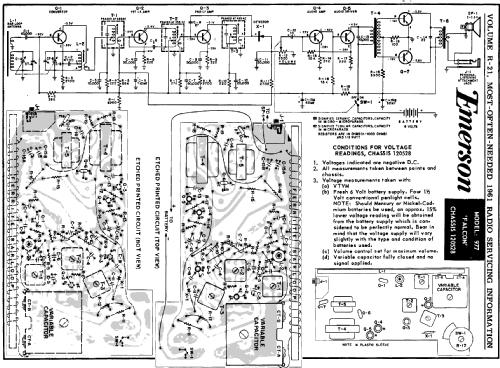

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 555 folder 8 date 11-61 title)
Literature/Schematics (2) Transistor Radios (Model info on page 43)
Literature/Schematics (3) Collector's Guide To TrR1 Bunis trans.94 (Model info on page 86)

Model page created by Egon Penker. See "Data change" for further contributors.
