AJ-137 Ch= AJ

AJ-137 Ch= AJ; Emerson Radio & (ID = 282805) Radio
AJ-137 Ch= AJ; Emerson Radio & (ID = 1413195) Radio AJ-137 Ch= AJ; Emerson Radio & (ID = 1413196) Radio
Use red slider bar for more.
AJ-137 Ch= AJ; Emerson Radio & (ID = 1413195) Radio
Emerson Radio &: AJ-137 Ch= AJ [Radio] ID = 1413195 800x913
Select picture or schematic to display from thumbnails on the right and click for download.
For model AJ-137 Ch= AJ, Emerson Radio & Phonograph Corp.; New York, NY:

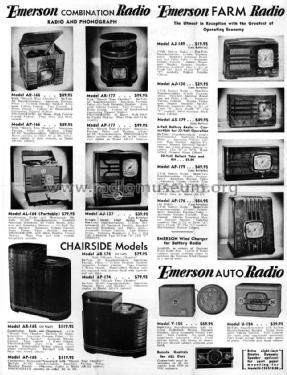

Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1C6 1A4 1B5 or 25S 30 1F4
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 2;2.5;3;135 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: AJ-137 Ch= AJ - Emerson Radio & Phonograph
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Notes

BC (540-1730kHz) band. Ingraham cabinet.

Price in first year of sale 39.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Machine Age to Jet Age III
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.
