For model AJ-149 Ch= AJ, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1C6 1A4 1B5 or 25S 30 1F4
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 2;2.5;3;135 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AJ-149 Ch= AJ - Emerson Radio & Phonograph
Material Bakelite case
Shape Tablemodel, low profile (big size).
Notes

BC (540-1730kHz) band. Walnut bakelite cabinet.

Price in first year of sale 19.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before

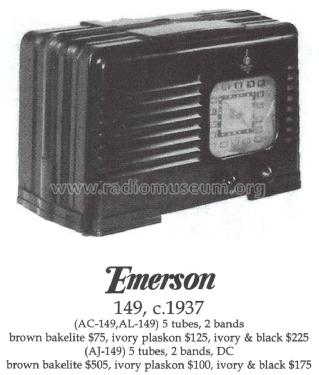

Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1880 models, 994 with images and 1404 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Emerson Radio &: AJ-149 Ch= AJ
Threads: 1 | Posts: 2
Hits: 924     Replies: 1
emerson: Ch= AJ; AJ-149
Allen Lein
16.Feb.15
  1

Only 4 tubes mentioned, need to add a #30 tube, next to last.

Götz Linss
17.Feb.15
  2

Thanks for the hint Allen!

Greetings Goetz Linss

Now up-to-date.
