AR-165 Ch= AR

AR-165 Ch= AR; Emerson Radio & (ID = 282989) Radio

AR-165 Ch= AR; Emerson Radio & (ID = 282990) Radio

AR-165 Ch= AR; Emerson Radio & (ID = 569975) Radio

AR-165 Ch= AR; Emerson Radio & (ID = 843516) Radio
AR-165 Ch= AR; Emerson Radio & (ID = 1413204) Radio AR-165 Ch= AR; Emerson Radio & (ID = 1413200) Radio
Use red slider bar for more.
AR-165 Ch= AR; Emerson Radio & (ID = 1413204) Radio

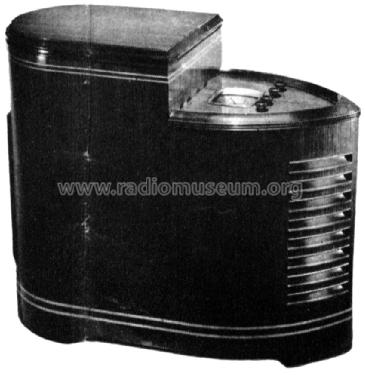

Emerson Radio &: AR-165 Ch= AR [Radio] ID = 1413204 850x872
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-165 Ch= AR, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 76 or 6Q7 76 41 or 6AC5G 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AR-165 Ch= AR - Emerson Radio & Phonograph
Material Wooden case
Shape Console: Chairside Radio.
Notes

BC(540-1730kHz) and SW(5.6-18.0MHz) bands. Models with serial numbers below 1326200 use 76 instead of 6Q7. 6AC5 tube used only on serial numbers 1412601 to 1413601 and above 1416650. 6.5" or 10" speaker. See also the Emerson model AR-165 with push-pull audio.

Price in first year of sale 119.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.
