AR-177 Ch= AR Push-pull audio

AR-177 Ch= AR; Emerson Radio & (ID = 283227) Radio

AR-177 Ch= AR; Emerson Radio & (ID = 569985) Radio

AR-177 Ch= AR; Emerson Radio & (ID = 1300150) Radio
AR-177 Ch= AR; Emerson Radio & (ID = 1413189) Radio AR-177 Ch= AR; Emerson Radio & (ID = 1413190) Radio
Use red slider bar for more.
AR-177 Ch= AR; Emerson Radio & (ID = 1413189) Radio

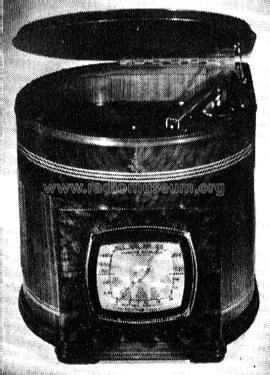

Emerson Radio &: AR-177 Ch= AR [Radio] ID = 1413189 800x1111
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-177 Ch= AR Push-pull audio, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 6Q7 41 41 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AR-177 Ch= AR [Push-pull audio] - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes

Serials 1326200-1412601. BC(540-1730kHz) and SW(5.6-18.0MHz) bands. 6.5" or 10" speaker. Ingraham cabinet, unusual style: like a cask or a short piece of a column. Phonograph had a high fidelity crystal pick-up and played 10-inch or 12-inch records. The cabinet was made of hand-rubbed contrasting figured walnut and included the Emerson "Miracle Tone Chamber." See also the Emerson model AR-177 without push-pull audio.

Price in first year of sale 99.95 $
Source of data Machine Age to Jet Age II
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before

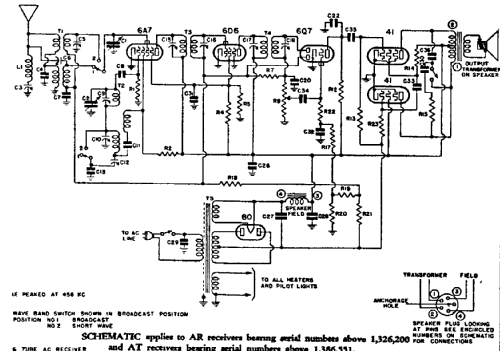

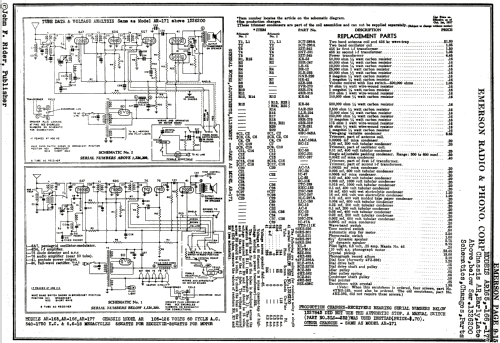

Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.
