• Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18555
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

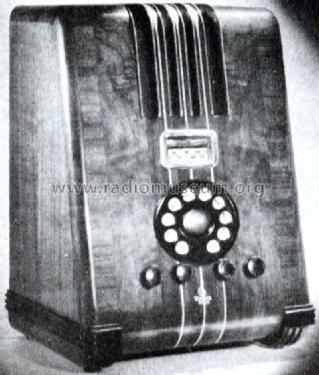

  • Model: AT-170 Ch= AT [no push-pull] - Emerson Radio & Phonograph
  • Shape
  • Tablemodel, slant panel.
  • Notes
  • BC(540-1730kHz) and SW(5.6-18.0MHz) bands. Either 6.5" or 10" speaker. Capability for automatic dial of ten preset BC stations. Ingraham cabinet. See also the version with push-pull output and only one tube for 2nd det. and 1st AF.

  • Price in first year of sale
  • 49.95 $
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Literature/Schematics (3)
  • Emerson Folder Form. 38-3, 5-37 for 1938.
