AT170 Ch= AT Push-pull audio

AT170 Ch= AT; Emerson Radio & (ID = 283322) Radio
AT170 Ch= AT; Emerson Radio & (ID = 485791) Radio AT170 Ch= AT; Emerson Radio & (ID = 485792) Radio
AT170 Ch= AT; Emerson Radio & (ID = 485794) Radio AT170 Ch= AT; Emerson Radio & (ID = 485793) Radio
AT170 Ch= AT; Emerson Radio & (ID = 485795) Radio AT170 Ch= AT; Emerson Radio & (ID = 1467307) Radio
Use red slider bar for more.
AT170 Ch= AT; Emerson Radio & (ID = 485791) Radio
Emerson Radio &: AT170 Ch= AT [Radio] ID = 485791 486x646
Select picture or schematic to display from thumbnails on the right and click for download.
For model AT170 Ch= AT Push-pull audio, Emerson Radio & Phonograph Corp.; New York, NY:
Ebay Nr. 170244857850 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 6Q7 41 41 80
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AT170 Ch= AT [Push-pull audio] - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, slant panel.
Notes Serial numbers above 1386551. The Emerson AT170 uses BC(540-1730kHz) and SW(5.6-18.0MHz) bands. Either 6.5" or 10" speaker. Capability for automatic dial of ten preset BC stations. Ingraham cabinet. Cabinet was made of hand-rubbed Walnut with Maple trim and included the Emerson "Miracle Tone Chamber." See also the same model name for version without push-pull.
Price in first year of sale 50.00 $
Source of data Machine Age to Jet Age III

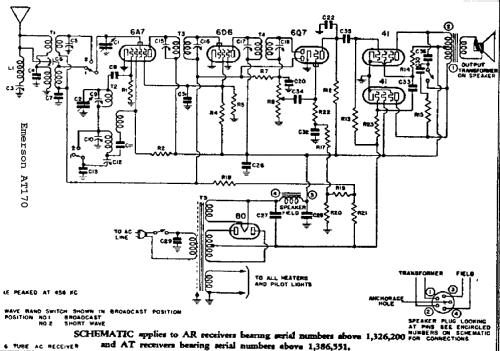

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in 1938 Emerson sales brochure with prices

Model page created by Götz Linss. See "Data change" for further contributors.
