BL-200 Ch= BL

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38811

• • alternative name: Emerson Television

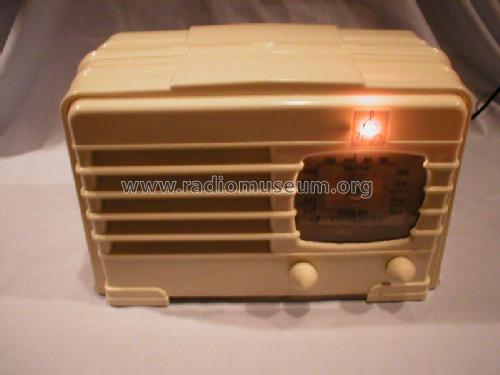

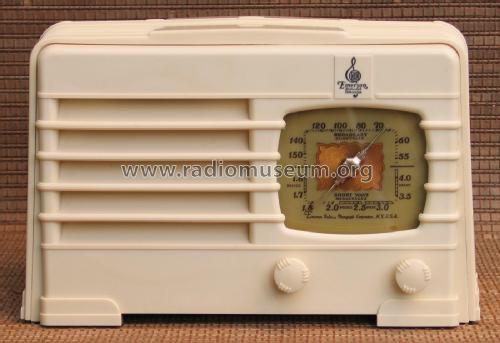

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6Q7G 41 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: BL-200 Ch= BL - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• BC (540-1780kHz) and TROP (1780-4200kHz) bands.

  Available in Walnut $19.95 or in Ivory $24.95.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Machine Age to J(1-2) Stein 98)

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (3)
• Emerson Folder Form. 39-22, 2-39 for 1939.
