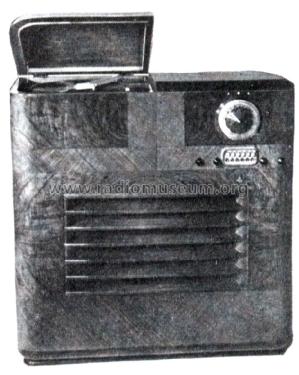

Emerson Radio &: BR-224 Ch= BR [Radio] ID = 1409333 933x1167
Select picture or schematic to display from thumbnails on the right and click for download.
For model BR-224 Ch= BR, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 39-22, 2-39 for 1939.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6K7 6K8 6K7 6Q7 6J5 6J5 6J5 6AC5G 6AC5G 6AC5G 6AC5G 80 80
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: BR-224 Ch= BR - Emerson Radio & Phonograph
Material Wooden case
Shape Console with any shape - in general
Notes

BC (540-1800kHz), TROP (1800-6250kHz) and SW (5.8-22.0MHz) bands. Triple IF filters. Push-pull audio amplifier by 2x2 6AC5G in parallel.

Price in first year of sale 169.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (3) Emerson Folder Form. 39-22, 2-39 for 1939.
