569 Ch= 120062-A

569 Ch= 120062-A; Emerson Canada; (ID = 771988) Radio

569 Ch= 120062-A; Emerson Canada; (ID = 771989) Radio

569 Ch= 120062-A; Emerson Canada; (ID = 771990) Radio
Use red slider bar for more.
569 Ch= 120062-A; Emerson Canada; (ID = 771988) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Emerson Canada; Toronto
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC= 105-125 / Bat.= 6 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: 569 Ch= 120062-A - Emerson Canada; Toronto
Shape Portable set > 8 inch (also usable without mains)
Notes Built-in loop antenna; selenium rectifier.
Circuit diagram reference Radio College of Canada

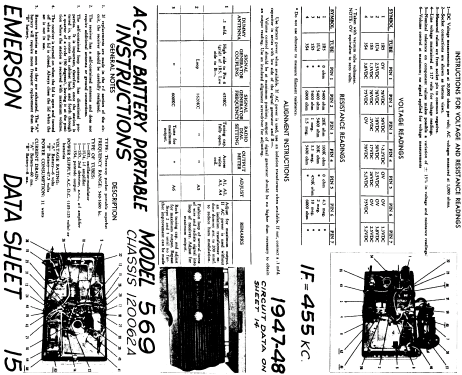

Literature/Schematics (1) Emerson Pages 14, 15, 18

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
