CJ-238

CJ-238 ; Emerson Radio & (ID = 1415412) Radio CJ-238 ; Emerson Radio & (ID = 1415413) Radio
Use red slider bar for more.
CJ-238 ; Emerson Radio & (ID = 1415412) Radio
Emerson Radio &: CJ-238 [Radio] ID = 1415412 933x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model CJ-238, Emerson Radio & Phonograph Corp.; New York, NY:

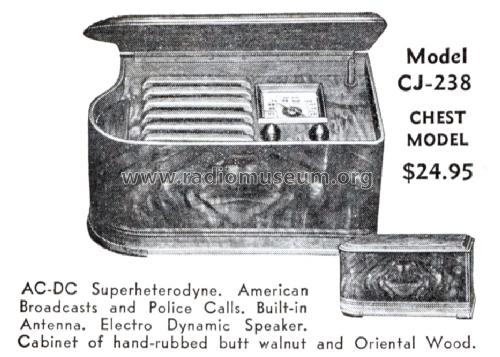

Scanned from the Emerson Folder Form. 40-31, 1-40 for 1940.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: CJ-238 - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Lift top starts and stops radio.

Price in first year of sale 24.95 $
Source of data Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (3) Emerson Folder Form. 40-31, 1-40 for 1940.

Model page created by Götz Linss. See "Data change" for further contributors.
