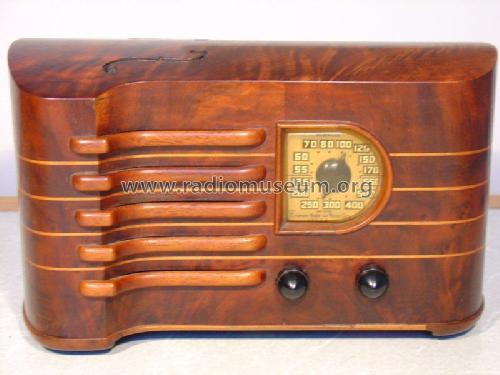

CL-256 Stradivarius Ch= CL; Emerson Radio & (ID = 105905) Radio
Emerson Radio &: CL-256 Stradivarius Ch= CL [Radio] ID = 105905 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model CL-256 Stradivarius Ch= CL, Emerson Radio & Phonograph Corp.; New York, NY:
Emerson CL-256 Stradivari (1939) copy from Ebay seller grandpopsattic

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: CL-256 Stradivarius Ch= CL - Emerson Radio & Phonograph
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Notes

BC (540-1730 kHz) band. Table model "Strad", a violin shape Ingraham cabinet.

Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Collector's Guide to Antique Radios (6th edition)


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1884 models, 995 with images and 1406 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Emerson Radio &: CL-256 Stradivarius Ch= CL
Threads: 1 | Posts: 7
Hits: 1760     Replies: 6
emerson: Ch= CL; CL256 (CL-256)
Marvin J. Glassman
06.Aug.09
  1

Hello There,

I have in my collection this radio as pictured in Steins number 1. My set has a 25Z6, 25L6, 12A8, 12K7, & a 12Q7 tube. The radio had an original resistance AC line cord but I converted it so it now works well with a standard line cord......

My question is both the units you have on this general model have different tube line ups. Is mine unique ?

Please advise

Thanks>>>>>>Marv Glassman

Marvin J. Glassman
06.Aug.09
  2

I did look & there is no answer to my question !

I WANT TO KNOW IF I SHOULD MODIFY THE TUBE LINE UP ON THE 2 EXISTING THAT YOU HAVE ON RMORG OR JUST WAIT TILLYOU DECIDE WHAT TO DO.

>>>>>MARV GLASSMAN

Götz Linss
07.Aug.09
  3

Hi Marv,

if you are sure that those tubes are indeed 25L6 and 25Z6 (not G or GT) and it's for model CL-256 please change the tube line-up as follows:

12A8 or 12A8GT 12K7 or 12K7GT 12Q7 or 12Q7GT 25L6 or 35L6GT 25Z6 or 35Z4GT

Greetings Goetz Linss

Please note that editors are not permanently online. So getting no answer within 3 hours of you original posting is not a neglect of your posting.

Marvin J. Glassman
07.Aug.09
  4

Hello to you Goetz.

Yes, each of the tubes in my set are "GT" (small glass octals)....Should I suggest a change too in the actual model or should I just insert 3 additional pictures. I can weigh my set too.

Advise>>>>>>Marvin J Glassman

Konrad Birkner † 12.08.2014
07.Aug.09
  5

Hi Marv,

Are the tubes noted some where in Your set? or could they just have been replaced in the past? a resistance line cord added?

really a 25Z6 ? It has a different base. The 25Z4 is compatible, save the filament voltage.

plese mail photo of label (or whereever the tubes are noted).

regards,
KoBi

PS: Please understand, as Goetz mentioned above we dont have office hours. All Admins, Editors, Officers are working voluntarily. Nobody is paid, and nobody is on duty. IIt couldeven last  few days to get an answer. Dont worry. A 70 years old radio is used to wait.

Konrad Birkner † 12.08.2014
07.Aug.09
  6

Hi Marv,

Stein, Machine Age, depicts the CH256 which looks all the same as the CL256.

I guess that Your tube lineup points to the CH  model, where pics are still missing.

Dont modify the wrong model page, please!

Good luck!
KoBi

Marvin J. Glassman
07.Aug.09
  7

The problem is now solved. Based on the tubes in my set & the "CH" on the serial number label on the chassis back, I now know I have the " CH" model & I will be posting pictures later today/

Marvin J Glassman
